Description:

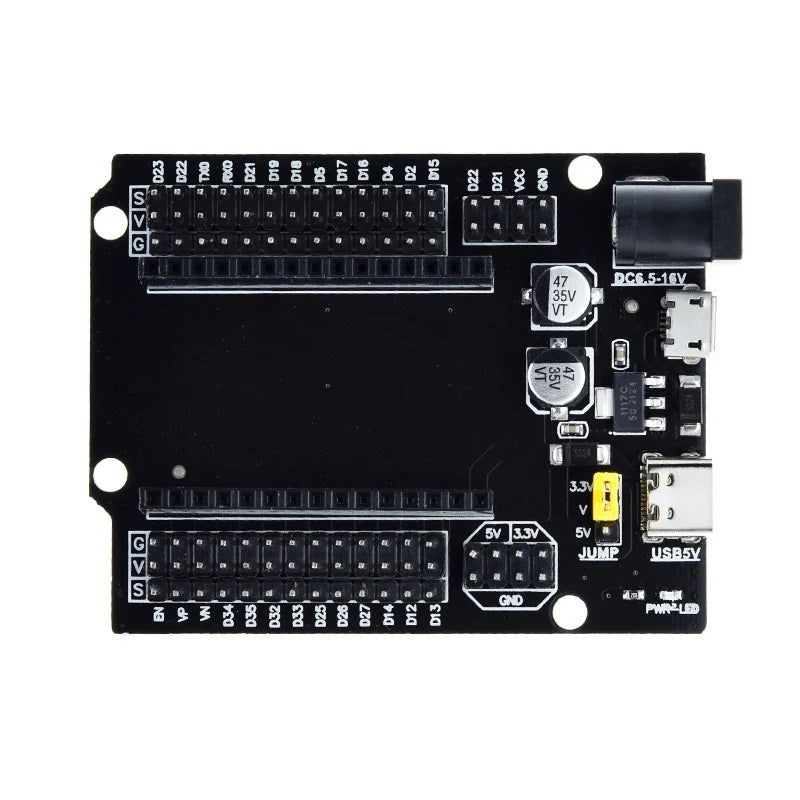

This Expansion Board enhances the capabilities of ESP32 microcontroller-based systems. It features a 30-pin connector for any 30-pin ESP32, enabling easy interfacing with various I/O sensors and peripherals. It seamlessly integrates with ESP32 microcontroller boards, offering versatility for IoT and electronics projects. Compatible with popular development environments, it provides a user-friendly solution for both beginners and experienced developers.

Key Features:

USB Type-C Port: Reversible connector for power and data.
No Need for Breadboard: Simplifies prototyping without requiring a breadboard, with male header pins that facilitates simple wiring with female jumper wires.
Easy to Plug in Servo into 3-Way Pins: Each GPIO pin equipped with 3-way pins for easy servo connections.
Dual Input Options: Supports 5V input via USB Type-C or 5.5V - 16V input via USB Micro.
Enhanced Power Management: Accommodates different power supply scenarios for increased adaptability.
Simplified Project Setup: Integrates multiple user-friendly features for efficient development.

Specifications:

• Power Input:
• USB Type-C: 5V
• USB Micro: 5.5V to 16V
• Connectivity: USB Type-C for power and data
• GPIO Pins: 3-way pins for each GPIO (Data, VCC, GND)
• 3-Pin Breakout for each pin: The data pin is the exact pin of the dev board broken out, and then the positive and negative are all connected to VCC and GND
