Description:

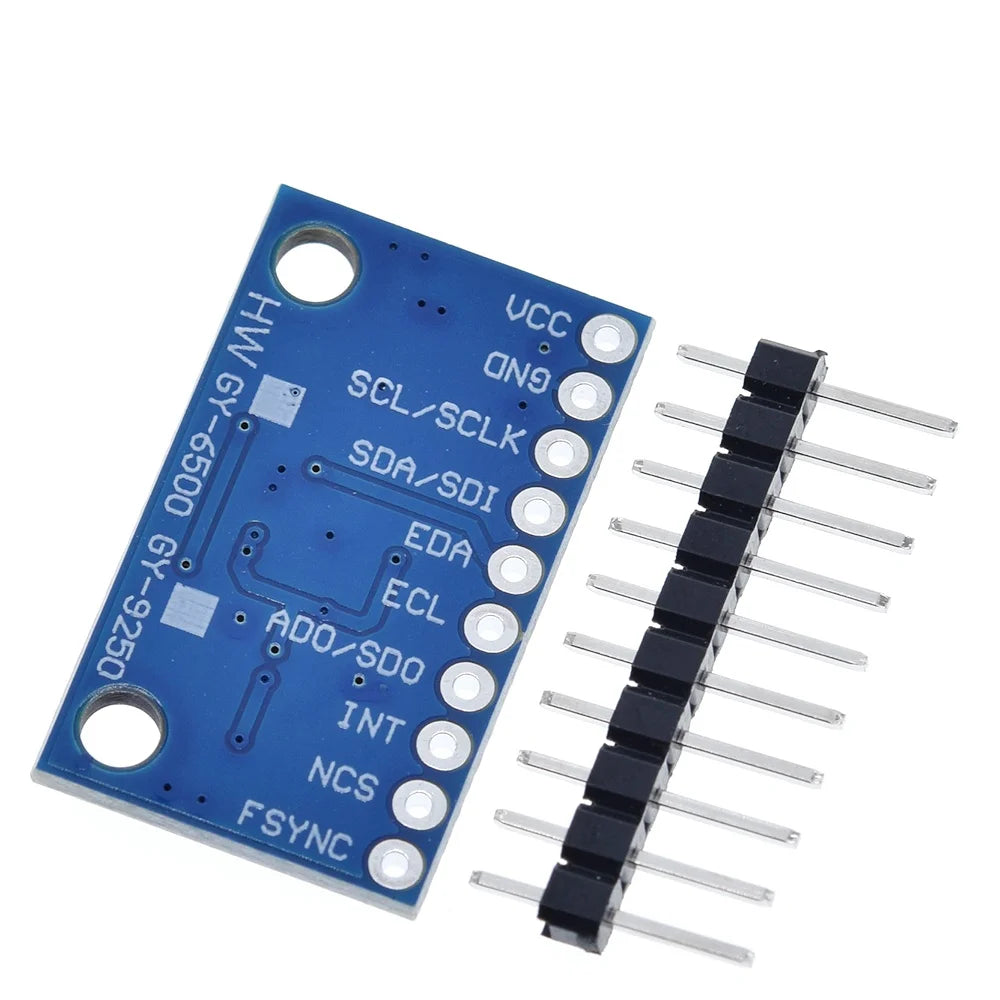

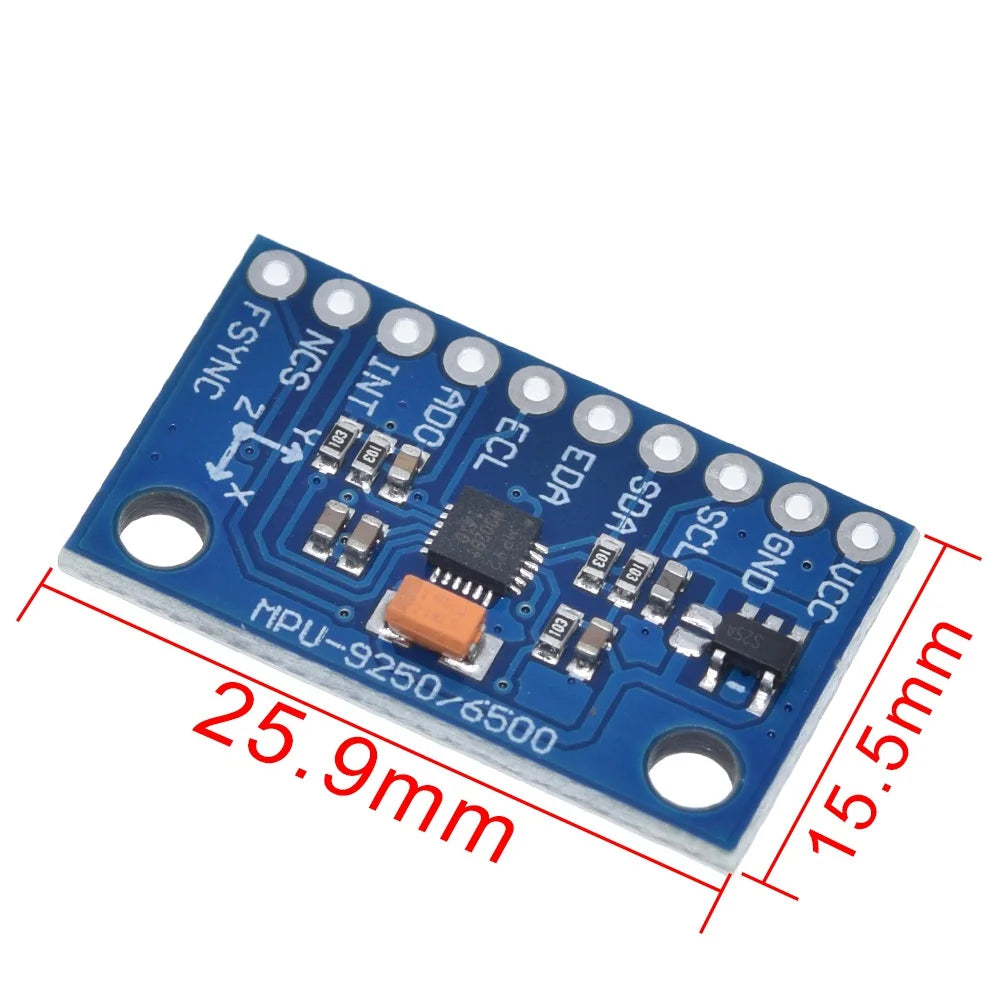

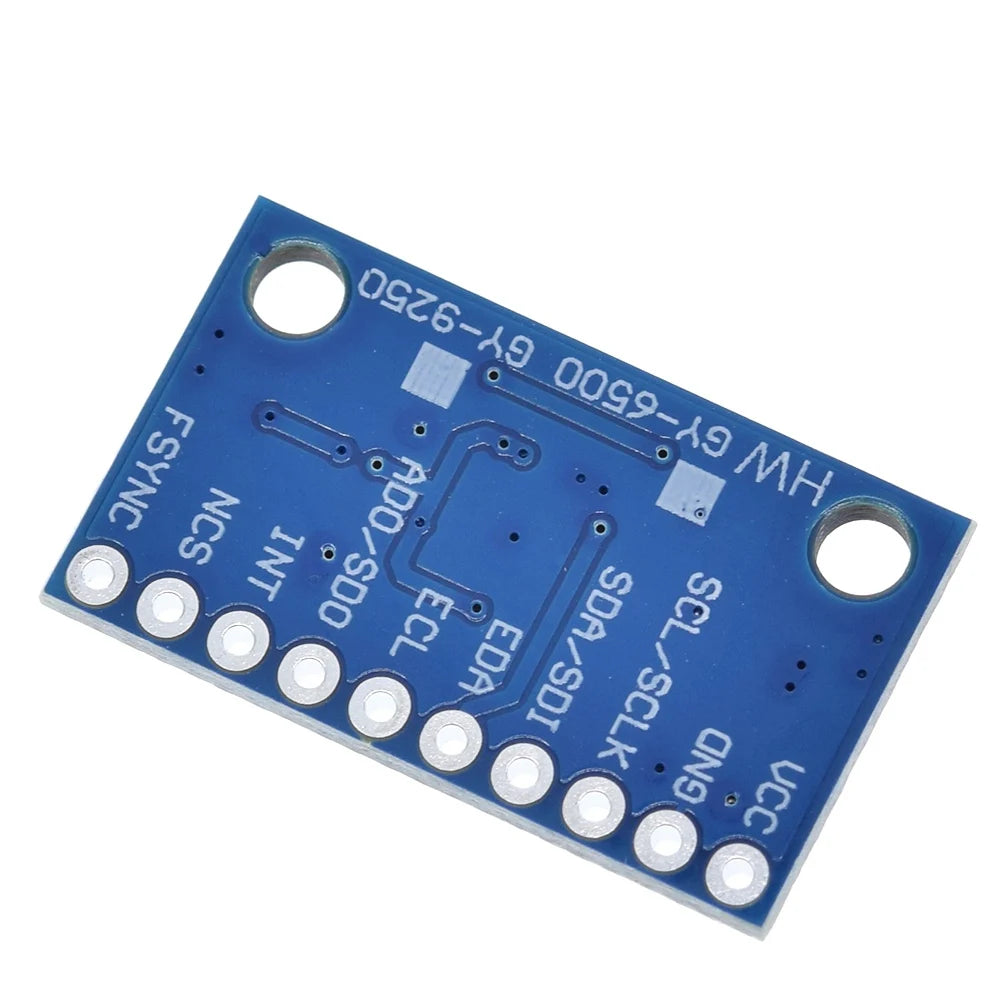

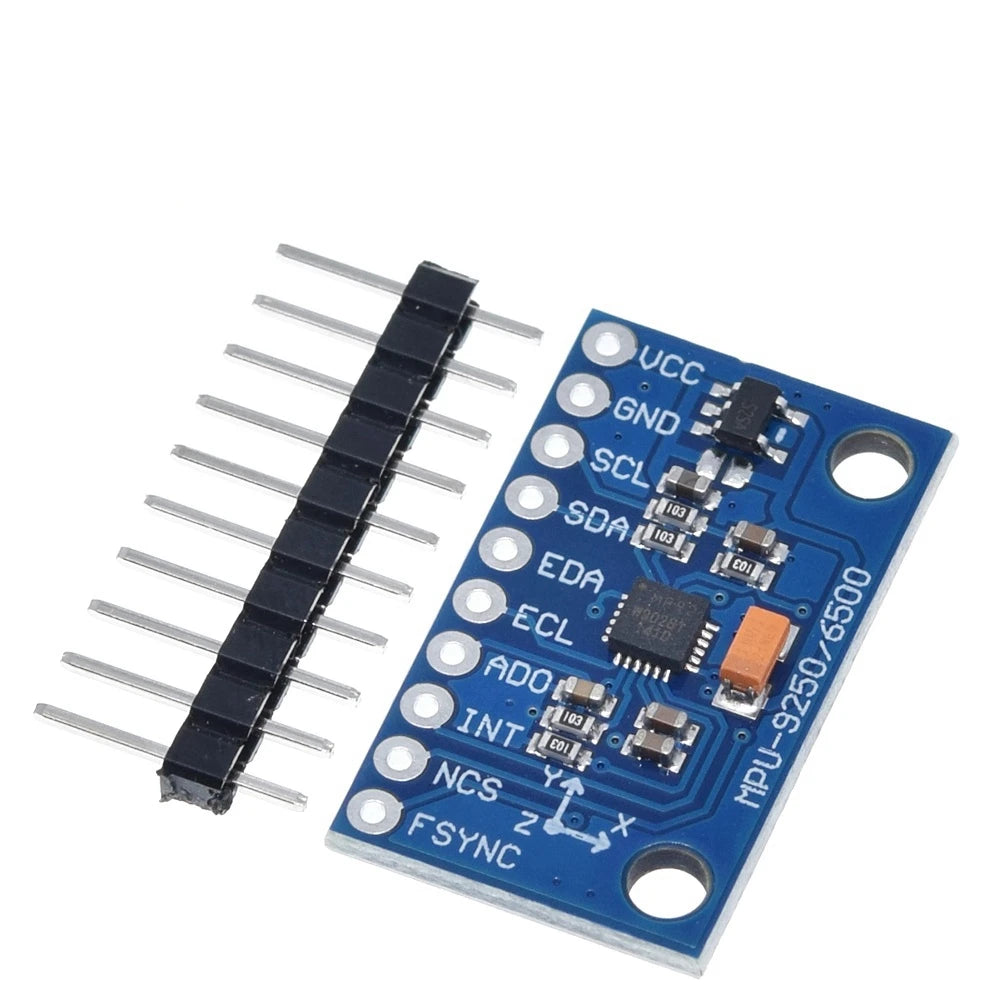

The MPU9250 (GY-9250) Module, a versatile breakout board that harnesses the power of InvenSense's MPU-9250 9-Axis IMU (Inertial Measurement Unit). This compact module packs a punch, consolidating a 3-axis accelerometer, a 3-axis gyroscope, and a 3-axis magnetometer into a single, diminutive chip. Offering an impressive 16-bits of resolution for each of the 9 axes, the MPU-9250 delivers unparalleled precision for motion sensing applications.

Key Features:

Integrated Sensors: Combines a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer in a single chip.
High Resolution: Provides 16-bits of resolution for each of the 9 axes, ensuring accurate and detailed motion data.
Temperature Sensor: Features an embedded digital output temperature sensor for comprehensive environmental monitoring.
User-Programmable Full Scale Range: Allows users to customize the full scale range for both the accelerometer and gyroscope based on specific project requirements.
FIFO Buffer: Equipped with a built-in 512-Byte FIFO (First In, First Out) buffer, facilitating efficient data storage and retrieval.
Low Power Consumption: Designed for extremely low power consumption, making it suitable for battery-operated and power-sensitive applications.
Auxiliary I2C Pins: Includes auxiliary I2C pins to seamlessly read data from external sensors, enhancing the module's versatility.

Specifications:
